Ravensburger clapper

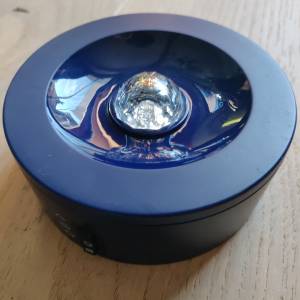

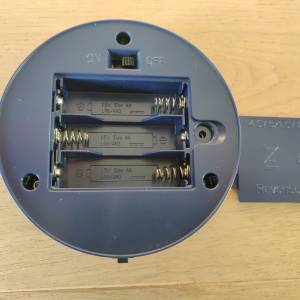

Ravensburger 3D Puzzle ball (e.g. 11248) with LED night light and clapping mechanism. What's inside the clapper lamp powered by 3xAAA batteries?

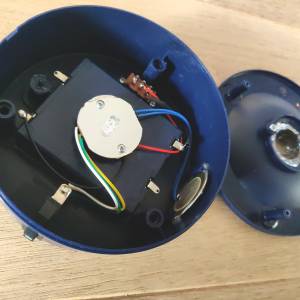

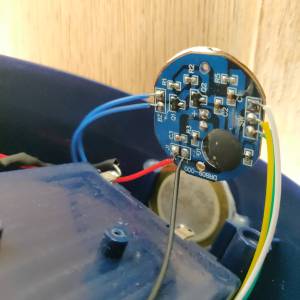

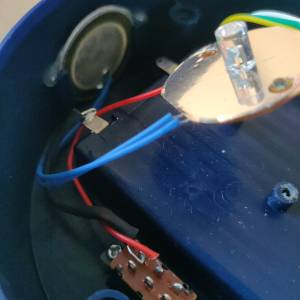

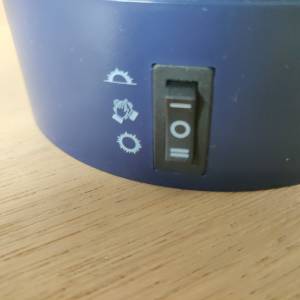

There is a 3-way-switch, a piezo element and a PCB. The PCB has on the one side the LED, on the other a small circuit with an ASIC. The piezo-electric is used to receive the clapping sound.

If you need a clapper circuit without building it yourself, just replace the LED with a transistor and switch whatever you want.
